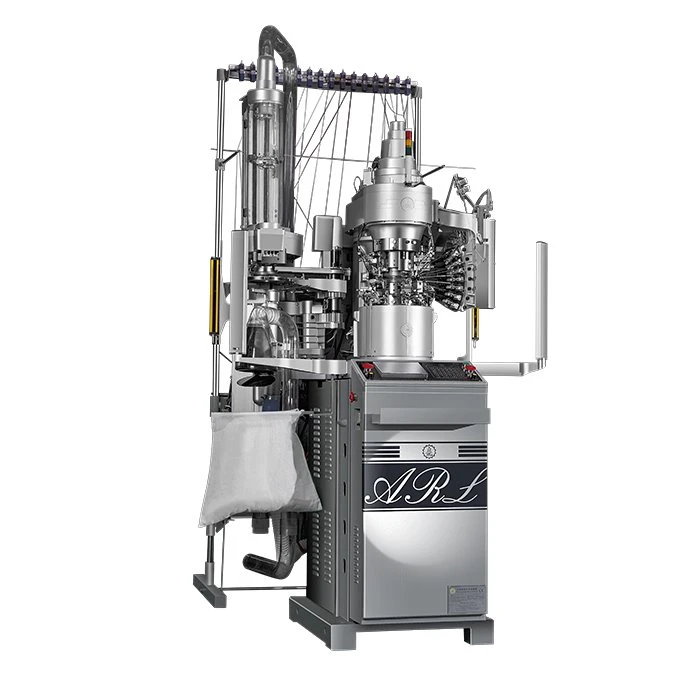

One Feed 4 Inch Automatic Linking Socks Knitting Machine

F-601 Fully computerized automatic linking socks knitting machine, is able to design plain knit, rib, picotwelt, two colors elastic, multilayer rib top and tucking stitch, and can make many kinds of socks. One feed socks machine is capable to weave one color at the same row. Linking machine for socks is convenient for maintenance and boasts stable performance, and high productivity, and adopts the Internet intelligent technology of cash to complete all the hosiery weaving, hosiery turning, sewing and other processes in one machine, which visualizes the production process.

Technical feature:

1. Drumless, fully automatic electronic control system;

2. Electro-pneumatic yam finger, bolt cams control;

3. Ac servo motor and driver;

4. Products in a circle of 1 color, up to 6inter colors in total;

5. Reinforcement for heel&toe;

6. Various sensor for obstacles(yarn inlet, yarn cutting, defected needle, selector cutting, electric obstacle);

7. Automatic lubricant device;

8. Electronic-pneumatic cam、 pick up and pick down;

9. Automatic turning over socks device;

10. "Y" or "W" forms of heel Part;

11. Socks separation to bottom direction and automatic turning over socks device; (This function can be used without toe closing device);

12. Independent automatic alignment head device.

Computer system for the fully computerized socks knitting machine:

1. Hdd: 10GB above

2. Ram: 128MB above

3. Vga Ram: 16 MB above

*Features could be changed without notice for the improving machine

Features of pattern design system:

1. Multiple languages displayed on LCD

2. USB system

3. High efficiency and precise actuator（8 steps）

4. Self-test function of actuator

5. Self-test function of each electric action part

6. Sole pattern selecting

7. Display of productivity

8. Storing of pattern design & style (Chain data)

Specifications:

Cylinder Diameter: 4 inches

Needle range: 108N~176N

Revolution: 260Rpm~320Rpm

Motor: 6.5Kw

Actuator: 5.5-6piezo electric ceramic actuators

Electric: 3P-AC 220V~380V 50/60Hz

Machine Dimension: (L)100cm X (W)160cm X (H)235cm

Packing Size: (L)120cm X (W)125cm X (H)200cm

Net weight: 500Kg

Gross Weight: 600Kg

*Production and R.P.M could be adjusted by different materials

FAQ:

Q: How to solve the equipment trouble during use?

A: Please email us about the problem with pictures or a small video will be better, we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.

Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, and we have builded up our company since 2003

Q: Where is your factory located?

A: Our factory address is: No.202, Tashan Road, Fotang Town, Yiwu City, China.

Our Service

1. Provide the technical design and solutions;

2. New plant construction guidance;

3. Designing and manufacturing of non-standard equipment;

4. Professional technical training and guidance on site according to the contract;

5. Supply accessories at any time;

6. Tele-technical consulting and services;

7. Other special technical service according to client's requirements.
