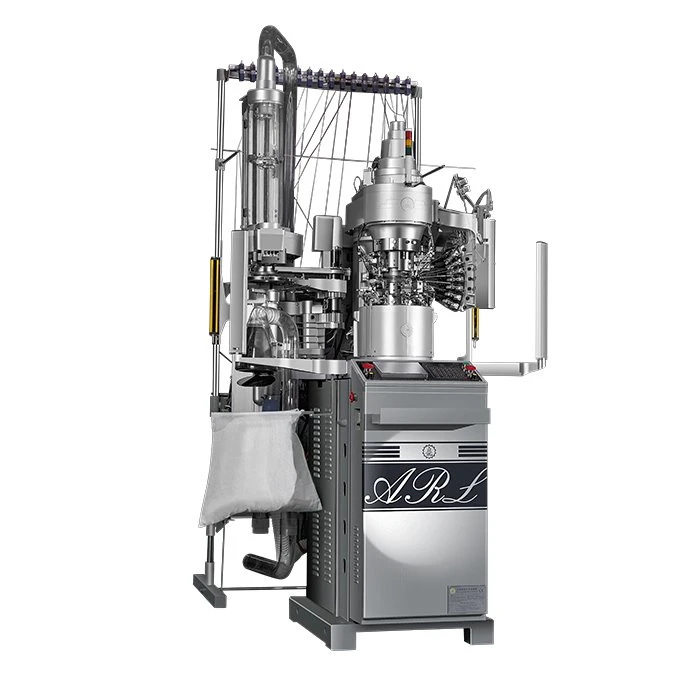

Two Color Elastic Socks Knitting Machine

F-601 Fully computerized double cylinder automatic socks linking machine, can knit various socks for men, women, children, as well as gentlemen socks, skeleton socks, panty-hose, and is able to design plain, rib, links-links, two colors elastic, multilayer rib top and tucking texture. Socks production machine is capable to weave one color at the same row. 7 connections of yam feeder in different colors can be operated in constant alternating knitting. The elastic socks knitting machine is convenient for maintenance and boasts stable performance, and high productivity, and adopts the Internet intelligent technology of cash to complete all the hosiery weaving, hosiery turning, sewing and other processes in one machine, which visualizes the production process.

Technical feature:

1. Drumless, fully automatic electronic control system;

2. Electro-pneumatic yam finger, bolt cams control;

3. Ac servo motor and driver;

4. Products in a circle of 1 color, up to 6inter colors in total;

5. Reinforcement for heel&toe;

6. Various sensor for obstacles(yarn inlet, yarn cutting, defected needle, selector cutting, electric obstacle);

7. Automatic lubricant device;

8. Electronic-pneumatic cam、 pick up and pick down;

9. Automatic turning over socks device;

10. "Y" or "W" forms of heel Part;

11. Socks separation to bottom direction and automatic turning over socks device; (This function can be used without toe closing device);

12. Independent automatic alignment head device.

Features of pattern design system:

1. Multiple languages displayed on LCD

2. USB system

3. High efficiency and precise actuator（8 steps）

4. Self-test function of actuator

5. Self-test function of each electric action part

6. Sole pattern selecting

7. Display of productivity

8. Storing of pattern design & style (Chain data)

Specifications:

Cylinder Diameter: 4 inches

Needle range: 108N~176N

Revolution: 260Rpm~320Rpm

Motor: 6.5Kw

Actuator: 5.5-6piezo electric ceramic actuators

Electric: 3P-AC 220V~380V 50/60Hz

Machine Dimension: (L)100cm X (W)160cm X (H)235cm

Packing Size: (L)120cm X (W)125cm X (H)200cm

Net weight: 500Kg

Gross Weight: 600Kg

*Production and R.P.M could be adjusted by different materials

FAQ:

Q: How many workers in your factory?

A: 120 workers.

Q: What is the delivery time for mass production?

A: About 25 days.

Q: Do you have after-sale service?

A: Yes, Good after-sale service, handling the customer complaint and solve problem for customers.

Q: Can you arrange shipment for customer?

A: Yes, very good experience in shipping, we work with the most reliable shipping companies in the world.

Our Service

1. More Professional service in socks machinery products exporting field

2. Better manufacture ability

3. Various payment term to choose: Fob/ CIF/ lC

4. High quality/Safe material/Competitive price

5. Small order available

6. Quickly response

7. More safe and fast transport
