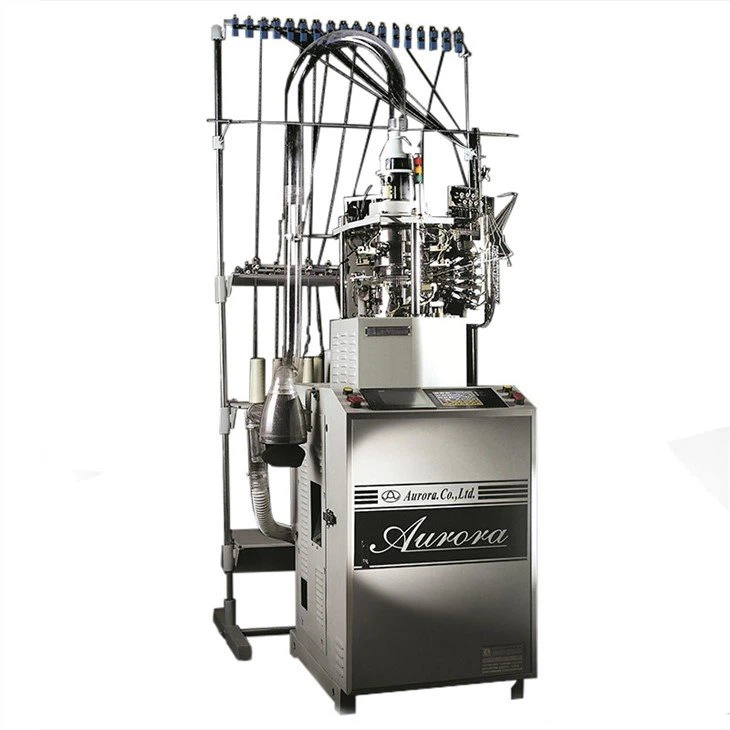

Three Feed 4 Inch Double Cylinder Socks Knitting Machine

J-3F3 Fully computerized automatic high speed links socks knitting machine, has simple structure and operation. China selector for needle selection is adopted. It can knit various socks for men, women, children, sports, as well as gentlemen socks, skeleton socks, panty-hose, three-colored jacquard socks, and is able to design plain, rib links and wrinkle patterns. It is capable to weave three colors at the same row. 9 connections of yam feeder in different colors can be operated in constant alternating knitting. This machine is convenient for maintenance and boasts stable performance, and high productivity.

Aurora set up offices in Zhejiang, Jiangsu, Guangdong province and other abroad regions for better after-sale service. Our three feed socks knitting machine sell well in domestic and foreign markets, and we have become a famous international intelligent hosiery machine manufacturer in China.

Technical feature:

1. Drumless, fully automatic electronic control system;

2. Electro-pneumatic yam finger, bolt cams control;

3. Ac servo motor and driver;

4. Adopt two road shuttle feeding device, 11 shuttles in total and 3 groups of scissors;

5. 9 colors yarn continuous-exchange knitting;

6. Various sensor for obstacles(yarn inlet, yarn cutting, defected needle, selector cutting, electric obstacle);

7. Automatic lubricant device;

8. Downward sock discharging function, and automatic sock turning device;

9. Capable to weave 3 colors at same row and elastic alternatively;

10. "Y" or "W" forms of heel Part;

11. Box used cylinder shorter structure, suitable for high speed operation and jacquard triangle cam connection by all in one structure, noise can be reduced;

12. Front and back heel consolidate.

Features of pattern design system:

1. Multiple languages displayed on LCD

2. USB system

3. High efficiency and precise actuator（8 steps）

4. Self-test function of actuator

5. Self-test function of each electric action part

6. Sole pattern selecting

7. Display of productivity

8. Storing of pattern design & style (Chain data)

Using condition of pattern design system:

1. Computer hardware: Pentium 4

2. O.S: XP

3. Hdd: 10GB above

4. Ram: 128MB above

5. Vga Ram: 16 MB above

*Features could be changed without notice for improving machine

Specifications:

Cylinder Diameter: 4 inches

Needle range: 96N~224N

Revolution: 180Rpm~260Rpm

Motor: 1.3Kw~1.5Kw

Actuator: 5.5-6piezo electric ceramic actuators

Electric: 3P-AC 220V~380V 50/60Hz

Machine Dimension: (L)100cm X (W)160cm X (H)235cm

Packing Size: (L)100cm X (W)100cm X (H)200cm

Net weight: 400Kg

Gross Weight: 450Kg

*Production and R.P.M could be adjusted by different materials

Our Advantage:

1. Weaving high-end socks, powerful, socks flat, clear jacquard.

2. High speed, high efficiency and stability.

3. One worker can manage more than 30 hosiery machines at the same time, reducing labor by more than 70%.

FAQ:

Q: Have your products been exported?

A: Yes, they have been exported to the Russia, Iran, Vietnam, India, Thailand, Pakistan and so on.

Q: How to solve the equipment trouble during use?

A: Please email us about the problem with photos or a video will be better, we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.

Why choose us?

• We offer a complete range of services, from consultation to installation and training, to ensure that our customers get the most out of our Double Cylinder Socks Knitting Machines.
• Our company pays attention to the production cost, quality and marketability of our Three Feed 4 Inch Double Cylinder Socks Knitting Machine.
• We invest heavily in research and development to ensure that our Double Cylinder Socks Knitting Machines are always ahead of the competition.
• The company's product varieties are diversified, its structure is more rationalized, and the Three Feed 4 Inch Double Cylinder Socks Knitting Machine product quality is reliable.
• Our machines are designed to increase productivity while reducing labor costs.
• We value quality as life, continuously introducing advanced production equipment, developing and training outstanding technical personnel.
• We are a Chinese factory that offers high-quality and efficient Double Cylinder Socks Knitting Machines.
• Through operation, the company continuously expands the scale of the industry and strives to recreate brilliance from a new starting point.
• Our Double Cylinder Socks Knitting Machines are customizable to meet the specific needs of our customers.
• We can produce Three Feed 4 Inch Double Cylinder Socks Knitting Machine of international standards and national standards according to customers' requirements.
