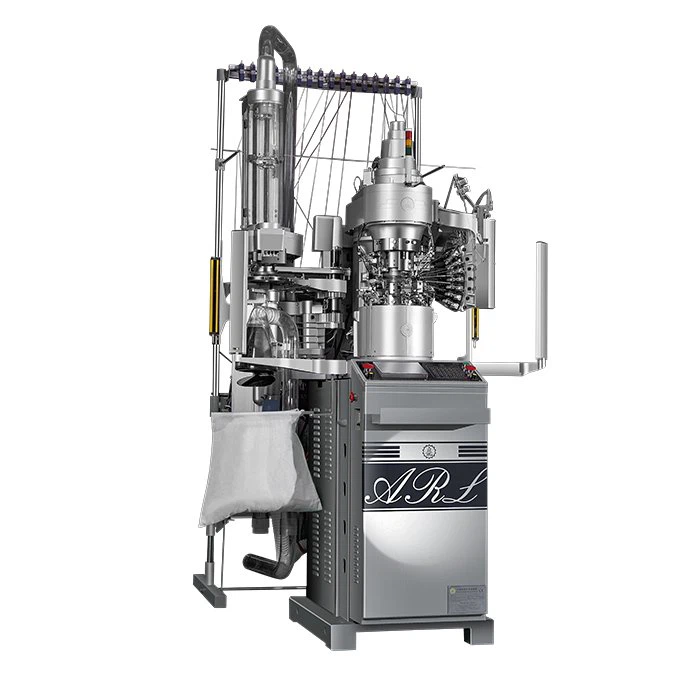

Multiple Function Double Cylinder Sock Hosiery Machine

F-601 4 inches multiple function sock hosiery machine, is able to design plain, rib, links-links, two colors elastic, multilayer rib top and tucking texture. Socks production machine is capable to weave one color at the same row. 7 connections of yam feeder in different colors can be operated in constant alternating knitting.

Aurora, the self-innovation company possesses excellent R&D team. We invite many senior Korea and domestic researchers to provide their advanced technology and cooperate with scientific research departments and universities. All these have provide a endless driven force to carry out the technology innovation. The company are devoting their latest R&D achievements form laboratory to the market to change into productivity. Though continuously innovation and adjustment, the commercial hosiery making machine developed independently by the company are not inferior than any other hosiery making machine in developed counties and they are even more superior on its speed and other functions. It's a leader of Chinese hosiery manufacturing machine manufacturers.

Technical feature:

1. Drumless, fully automatic electronic control system;

2. Electro-pneumatic yam finger, bolt cams control;

3. Ac servo motor and driver;

4. Products in a circle of 1 color, up to 6inter colors in total;

5. Reinforcement for heel&toe;

6. Various sensor for obstacles(yarn inlet, yarn cutting, defected needle, selector cutting, electric obstacle);

7. Automatic lubricant device;

8. Electronic-pneumatic cam, pick up and pick down;

9. Automatic turning over socks device;

10. "Y" or "W" forms of heel Part;

11. Socks separation to bottom direction and automatic turning over socks device; (This function can be used without toe closing device);

12. Independent automatic alignment head device.

Features of pattern design system:

1. Multiple languages displayed on LCD

2. USB system

3. High efficiency and precise actuator（8 steps）

4. Self-test function of actuator

5. Self-test function of each electric action part

6. Sole pattern selecting

7. Display of productivity

8. Storing of pattern design & style (Chain data)

Specifications:

Cylinder Diameter: 4 inches

Needle range: 108N~176N

Revolution: 260Rpm~320Rpm

Motor: 6.5Kw

Actuator: 5.5-6piezo electric ceramic actuators

Electric: 3P-AC 220V~380V 50/60Hz

Machine Dimension: (L)100cm X (W)160cm X (H)235cm

Packing Size: (L)120cm X (W)125cm X (H)200cm

Net weight: 500Kg

Gross Weight: 600Kg

*Production and R.P.M could be adjusted by different materials

FAQ:

Q: What's is your shipping service?

A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

Q: Which shipping way can you provide?

A: We can provide shipping by sea, by air and by express.

Q: Have your products been exported?

A: Yes, they have been exported to the Russia, Panama , Iran, Vietnam, Pakistan and so on.

Q: Do you looking for an Agent?

Yes, we're looking for the agent all over the world, please contact us for further discussion.

Our Services

1. Good knowledge on different market can meet special requirements.

2. Real manufacturer with our own factory located in No.202 Tashan Road, Fotang Town, Yiwu City, China.

3. Strong professional technical team ensure to produce the top quality products.

4. Special cost control system ensure to provide the most favorable price.
