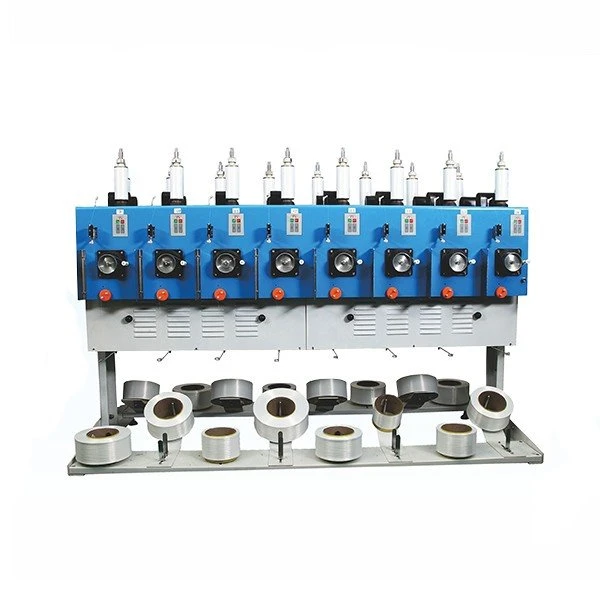

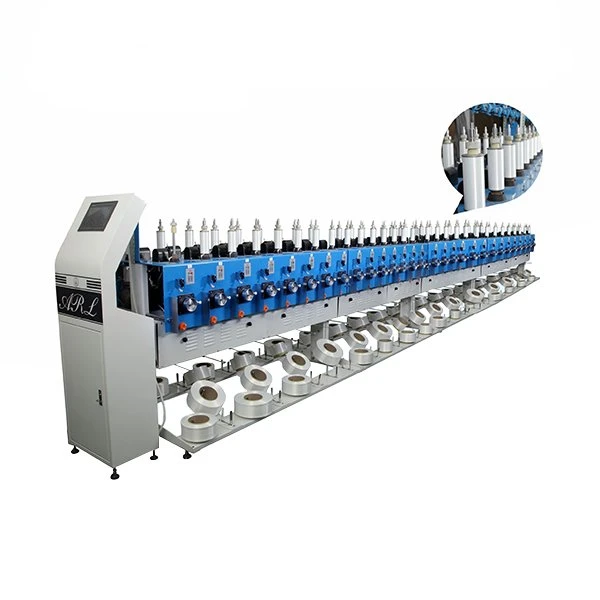

Fully Automatic Sewing Thread Winding Machine

Sewing thread winding machine, high performance servo motor yarn guide can improve production efficiency and reduce cost. Fully automatic thread winding machine adopt comprehensive intelligent control technology, all parameters related to yarn quality can be adjustable at will. And automatic sewing thread winding machine adopt intelligent tension system, active unwinding device and automatic tracking overfeed system, ensure uniform density of.

Aurora is committed to the design, research and development, manufacturing and sales of knitting machinery products, and established a perfect after-sales service system, to create a fast and efficient professional service team, to solve the worries of customers. In Guangdong, Jiangsu, Zhejiang and other provinces with professional and technical personnel to set up offices, to provide customers with a full range of one-stop service.

Technical parameters:

1. Form, single section double side, single ingot independent drive and control, can set up the process separately.

2. Power, 280W/ ingot

3. Ingot type and ingot number, high speed motor direct control straight rod large spindle, 16 ingots / section

4. Number of knots, 6 section (96 ingots)

5. Size of the whole machine, 12000*1000*1580mm

6. Control the size of the camera cabinet, 330*500*1520mm

7. Winding form, precision parallel winding

8. Maximum process speed, 1600 m / min

9. Transverse length: 100-200mm

10. Material: FDY. DTY

11. Suitable raw material specification, 5.5dtex 440dtex

(According to the requirements, the accessories passed by line should be matched)

12. 24-hour theoretical output of single ingot: linear speed * fraction * efficiency * 60*24/9000* 1000*1.1

(REMARK: the machine immediate force adjustment, computer forming constant distance, fixed length and fixed weight, automatic edge finding, broken wire full pipe self-stop function and half pipe joint to achieve diameter self-stop function.)

Our service:

1. Strong raw material, we adopt strong new material for machine frame production, making the machine running smoothly when production.

2. Good quality electric parts, make sure the automatic thread winding machine can use for long time without problem.

3. Strong technical team and full experience for costuming the machine as client's production request.

4. Professional pre-sale service, help you get exact machine for your product.

5. Easy control and adjust system, make your production more easy and fast.

6. Responsible after sale service, help you install the machine, train you use the machine step by step.

FAQ:

Q: Can we send sample for customizing the machine?

A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.

Q: Can we go to your factory discussing more detail and checking the quality of the machine?

A: Yes, no problem, welcome to our factory and we will do our best to help you.

Q: Can we inspect the machine before delivery?

A: Yes, you can come and inspect the delivery. If you can't come, we have specialized engineer team to test the machine and inspect the delivery. We guarantee that you can receive a totally good machine.

Q: If we have problem on machine or production, can you help us?

A: Yes, no problem.

We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide good service for the machine.

Q: When can I expect delivery of my item?

A: Production time will be 35-40 days.
