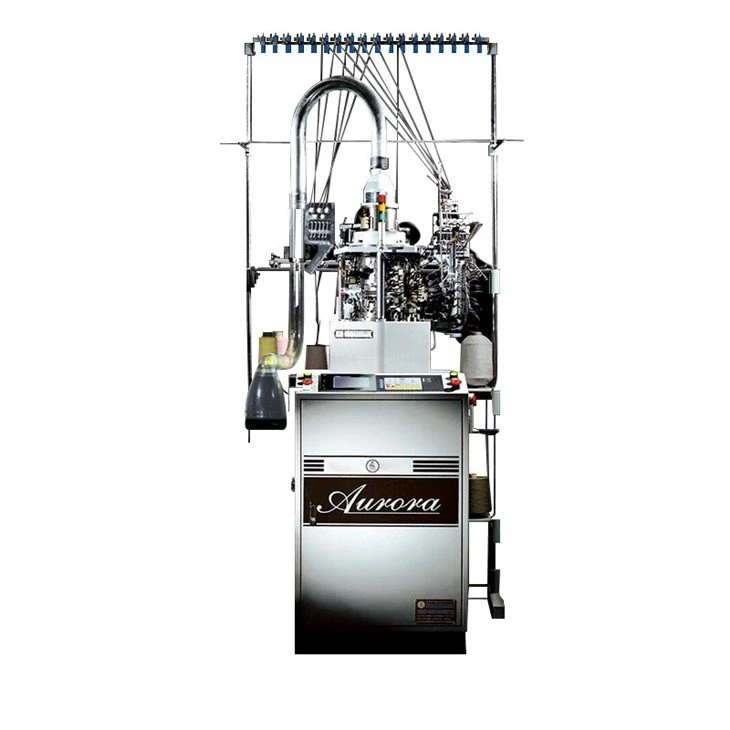

Two Feed 4.5 Inch Double Cylinder Automatic Socks Knitting Machine

J-2F2, 4.5 inch socks knitting machine can produce plain, jacquard, rib, links, especially in making cartoon socks, business socks, casual socks. Aurora have 160 people servicing for the company, including 30 researchers. With 2000 sets annual out-put scale, it's a medium-to-high level two feed socks knitting machine manufacture in China. The company possesses its own independent intellectual property rights of ARL machines. All the products that independently developed by the company meet International Technology standard.

Technical feature:

1. Drumless, fully automatic electronic control system;

2. Electro-pneumatic yam finger, bolt cams control;

3. Ac servo motor and driver;

4. Adopt two road shuttle feeding device, 9 shuttles in total, 2 groups of scissors;

5. 8 different color yarns exchange knitting continuously;

6. Various sensor for obstacles (yarn inlet, yam cutting, defected needle, selector cutting, electric obstacle);

7. Automatic lubricant device;

8. Downward sock discharging function, and automatic sock turning device;

9. Capable to weave two colors at same row and elastic alternatively;

10. Jacquard triangle cam connection by all in one structure, noise can be reduced;

11. "Y" or "W" forms of heel Part;

12. Reinforcement for heel & toe.

Features of pattern design system:

1. Multiple languages displayed on LCD

2. USB system

3. High efficiency and precise actuator（8 steps）

4. Self-test function of actuator

5. Self-test function of each electric action part

6. Selecting function of basic pattern existence

7. Display of products quantity

8. Storing of pattern design & style (Chain data)

Using condition of pattern design system:

1. Computer hardware: Pentium 4

2. O.S: windows XP

3. Hdd: 10GB above

4. Ram: 128MB above

5. Vga Ram:16 MB above

*Features could be changed without notice for improving machine

Specifications:

Cylinder Diameter: 4.5 inches

Number of needles: 42N~96N

Revolution: 180Rpm~240Rpm

Motor: 1.3Kw~1.5Kw

Actuator: 5.5-6piezo electric ceramic actuators

Electric: 3P-AC 220V~380V 50/60Hz

Machine Dimension: (L)100cm X (W)160cm X (H)235cm

Packing Size: (L)100cm X (W)100cm X (H)200cm

Net weight: 400Kg

Gross Weight: 450Kg

*Production and rotation speed could be adjusted by the kinds of yarn.

Our advantage:

1. High level auto socks machine R&D team.

2. Strict quality control, no random inspections, only full inspections, adhering to the concept that the next step is to delivery to the customer stable machine.

3. International professional sales team, trilogy (pre-sale, sale and after-sales service).

4. Forward-looking management team, scientific and modern management concepts.

5. Advanced production equipment, superb craftsmanship which give lean production control.

FAQ:

Q. How your quality guarantee?

We have 100% quality guarantee to customers. We will be responsible for any quality problem.

Q6. Can we visit your factory before place the order?

Yes, Very welcome that must be nice to set up good relationship for business.

Q. Could you print our company LOGO on the nameplate and package?

A: No, we can't do that.

Q. Can you give me a discount?

A: Discount is available, but we have to see the real quantity, we have different price based on different quantity, how much discounts are determined by the quantity, moreover, our price is very competitive in the field.
