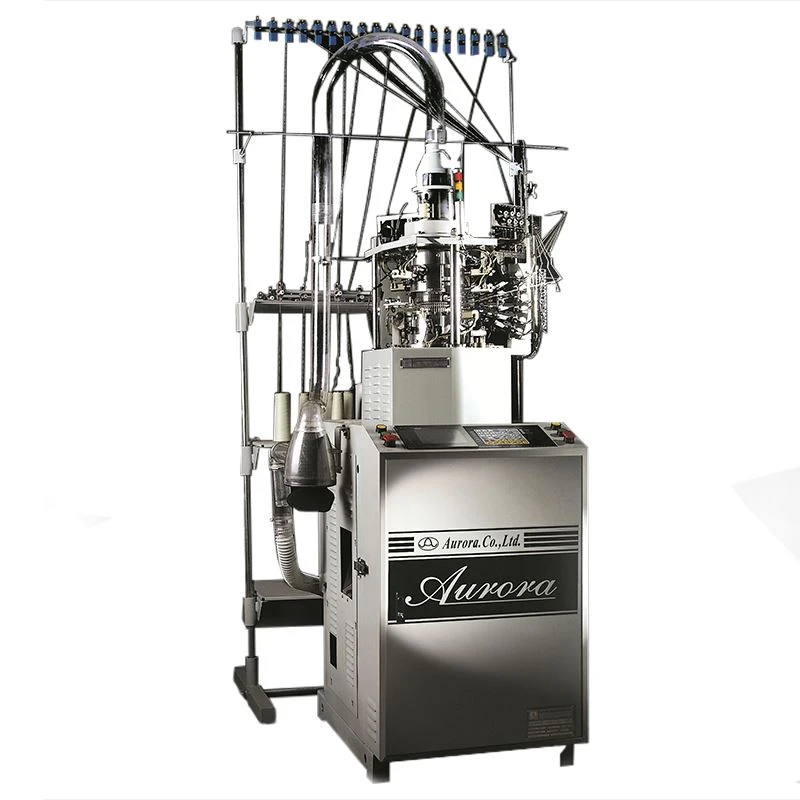

High Speed Double Cylinder Socks Knitting Machine

J-602 4.5 inches , high speed socks knitting machine of heavy gauge rang can knit lots of style of socks. Followed the scientific management system, standards and methods, all of the site production factors, including people, machines, materials, methods, environment and info are in the reasonable and effective planning, organization, coordination, control and testing so as to be in a prefect combination, thus to achieve a high efficiency, low consumption, balanced, safe and civilized production for our clients with high standard pruducts.

Feature

1. Drumless and fully automatic electronic control system;

2. Electro-pneumatic yarn finger, bolt cams control;

3. Servo motor and driver;

4. 6 Yarn fingers;

5. 5 different color yarns exchange knitting continuously;

6. Various sensor for obstacles(Yarn inlet, Yarn cutting, Defected Needle, Selector cutting, Electric Obstacle);

7. Automatic lubricant device;

8. Socks separation to bottom direction;

9. Adjustment of socks quality by stepping motor;

10. "Y" forms of heel;

11. Automatic turning over socks separation;

12. Reinforcement for heel & toe.

Features of pattern design system:

1. Multiple language displayed on LCD

2. USB system

3. High efficiency and high precise actuator（12 steps）

4. Self-testing function of actuator

5. Self-testing function of each electric action part

6. Sole pattern Selecting

7. Display of productivity

8. Storing of pattern design & style(Chain data)

Computer system for High Speed Sock Machine:

1. Computer hardware: Pentium 4

2. O.S: XP

3. Hdd: 10GB above

4. Ram: 128MB above

5. Vga Ram: 16 MB above

*Features could be changed without notice for the improving machine

Specifications:

Cylinder Diameter: 4 inches

Needle range: 42~96N

Revolution: 220Rpm~260Rpm

Motor: 1.3Kw~1.5Kw

Actuator: 5.5-6 piezo electric ceramic actuators

Electric: 3P-AC 220V~380V 50/60HZ

Machine Dimension: (L)100cm X (W)160cm X (H)235cm

Packing Size: (L)100cm X (W)100cm X (H)200cm

Net weight: 350Kg

Gross weight: 400Kg

*Production and R.P.M could be adjusted by different kinds of raw materials

FAQ:

How to solve the equipment trouble during use?

A: Please email us about the problem with pictures or a small video will be better, we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.

Can the products be manufactured by the customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as a requirement.

Can I request to advance the shipment?

A: It should depend on whether there is sufficient inventory in our warehouse.

Can I request to change the form of packaging and transportation?

A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

Our Service

1. More Professional service in product home sock knitting machine exporting field

2. Better manufacture ability

3. Various payment term to choose:FOB/CIF/LC

4. High quality/Safe material/Competitive price

5. Small order available

6. Quickly response

7. More safe and fast transport
