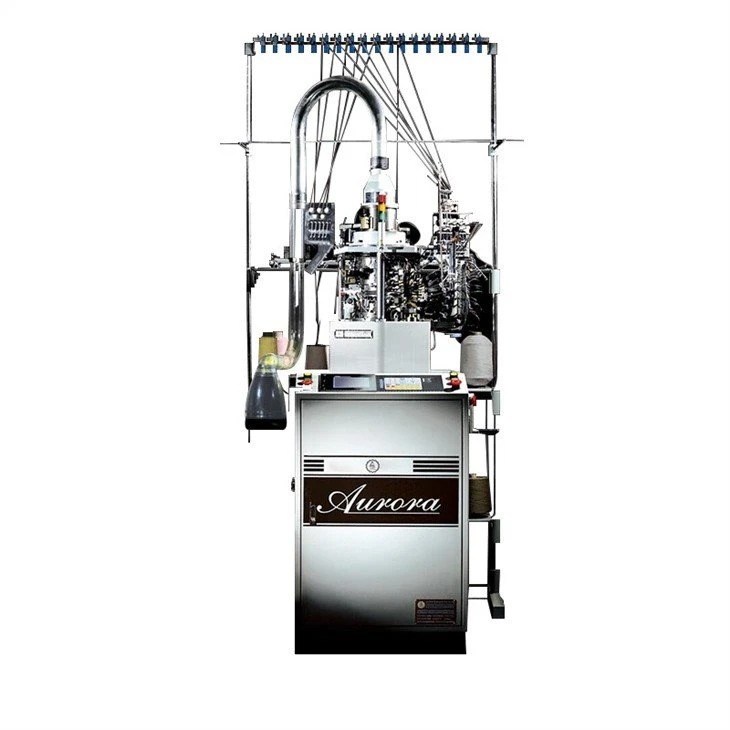

Computerized Plian Invisible Socks Knitting Machine

J-2F3 4 inches of regular gauge fullly computerized plain socks machine can make jacquard, ribs, links, plain knit socks, like tricolor jacquard socks and long stockings. Our company have plian invisible socks knitting machine, plain socks knitting machine, plain socks making machine and so on.

The company is committed to the design, research and development, manufacturing and sales of knitting machinery products, and established a perfect after-sales service system, to create a fast and efficient professional service team, to solve the worries of customers. In Guangdong, Jiangsu, Zhejiang and other provinces with professional and technical personnel to set up offices, to provide customers with a full range of one-stop service.

Technical feature:

1. Drumless and fully automatic electronic control system;

2. Electro-pneumatic yarn finger, bolt cams control;

3. Ac servo motor and driver;

4. Double yarn feeder device, 9 yarn fingers and two groups cutters;

5. 4 colors yarn continuous-exchange knitting;

6. Various sensor for obstacles (yarn inlet, yarn cutting, defected needle, selector cutting, electric obstacle);

7. Automatic lubricant device;

8. Downward socks discharging function, and automatic sock turning device;

9. Capable to knit 3 colors in one course, able to knit elastic alternatively;

10. "Y" heel or "W" forms of heel;

11. Jacquard triangle cam connection by all in one structure, noise can be reduced;

12. Reinforcement for heel & toe.

Features of pattern design system:

1. Multiple languages displayed on LCD

2. USB system

3. High efficiency and precise actuator（8 steps）

4. Self-test function of actuator

5. Self-test function of each electric action part

6. Sole pattern selecting

7. Display of productivity

8. Storing of pattern design & style (Chain data)

Using condition of pattern design system:

1. Computer hardware: Pentium 4

2. O.S: XP

3. Hdd: 10GB above

4. Ram: 128MB above

5. Vga Ram: 16 MB above

*Features could be changed without notice for improving machine

Specifications:

Cylinder Diameter: 4 inches

Needle range: 96N~224N

Revolution: 220Rpm~280Rpm

Motor: 1.3Kw~1.5Kw

Actuator: 5.5-6piezo electric ceramic actuators

Electric: 3P-AC 220V~380V 50/60Hz

Machine Dimension: (L)100cm X (W)160cm X (H)235cm

Packing Size: (L)100cm X (W)100cm X (H)200cm

Net weight: 400Kg

Gross Weight: 450Kg

*Production and R.P.M could be adjusted by different materials

FAQ:

Q: If l have a product that wants to be made in another special material, can you do it?

A: Of course, you just need to provide us designed drawings or sample and the R&D department will estimate that whether we can do or not, we will give you the most satisfactory reply.

Q: Can l visit your factory?

A: We warmly welcome your arrival, before you take off from your country, please let us know. We will show you the way and arrange a time to pick you up if possible.

Q: Can I request to advance the shipment?

A: It should depend on whether there is sufficient inventory in our warehouse.

What is your advantage compared with your competitors?

(1). Qualified Manufacturer

(2). Reliable Quality Control

(3). Competitive Price

(4). High-Efficiency working (24*7hours)

(5). One-Stop Service
